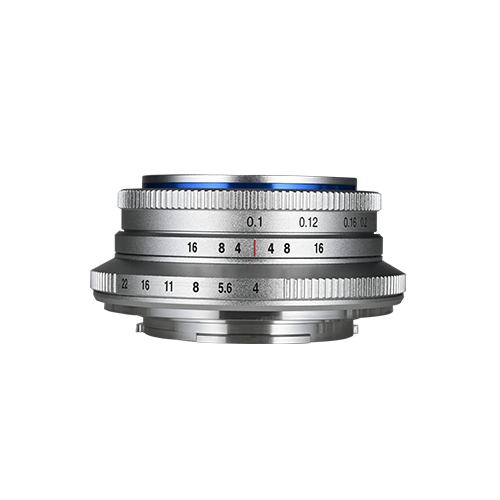

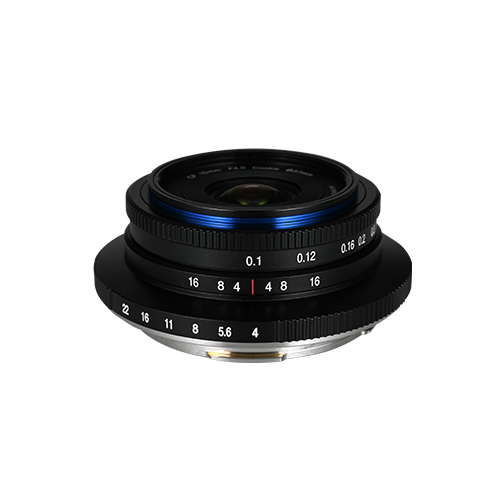

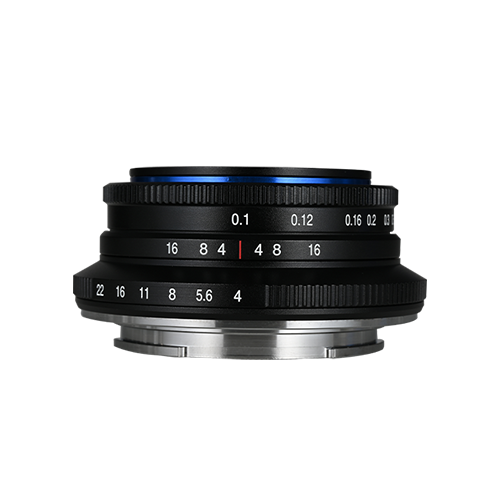

CF 10mm F4.0 Cookie

It specifically designed for APS-C mirrorless cameras. The lens is extremely compact at 25mm long and weighs only 130g. It is the world’s widest rectilinear pancake offering a remarkable 109.3° angle of view.

Silver
Black
M4/3
Fujifilm X
Canon EF-M
L mount
Canon RF
Nikon Z
Sony E

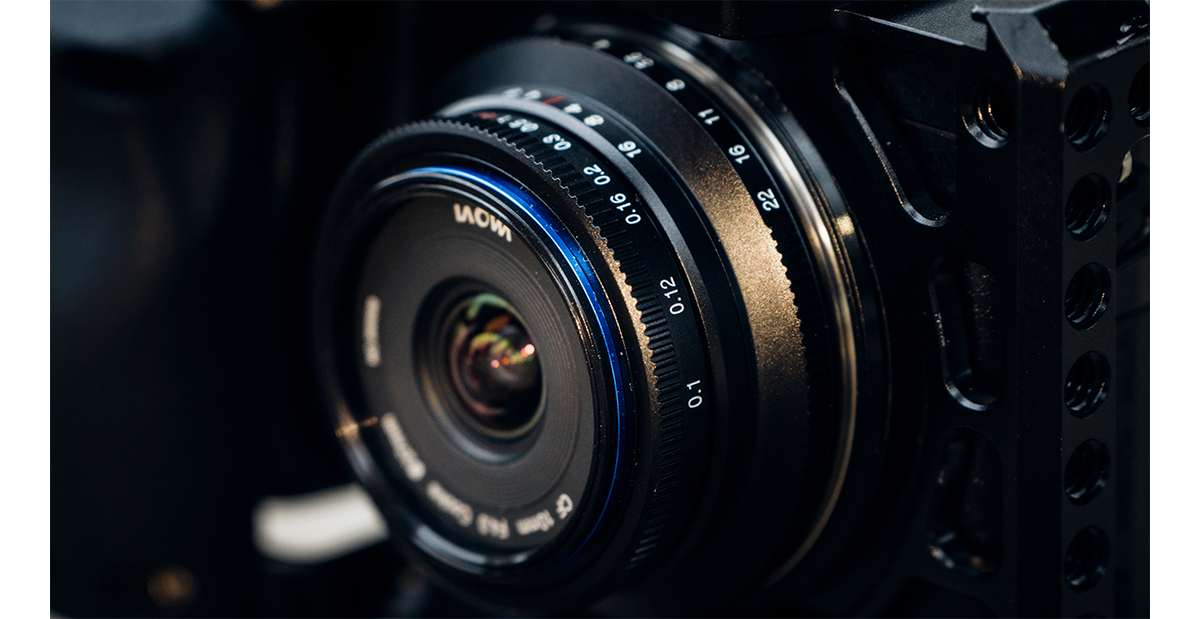

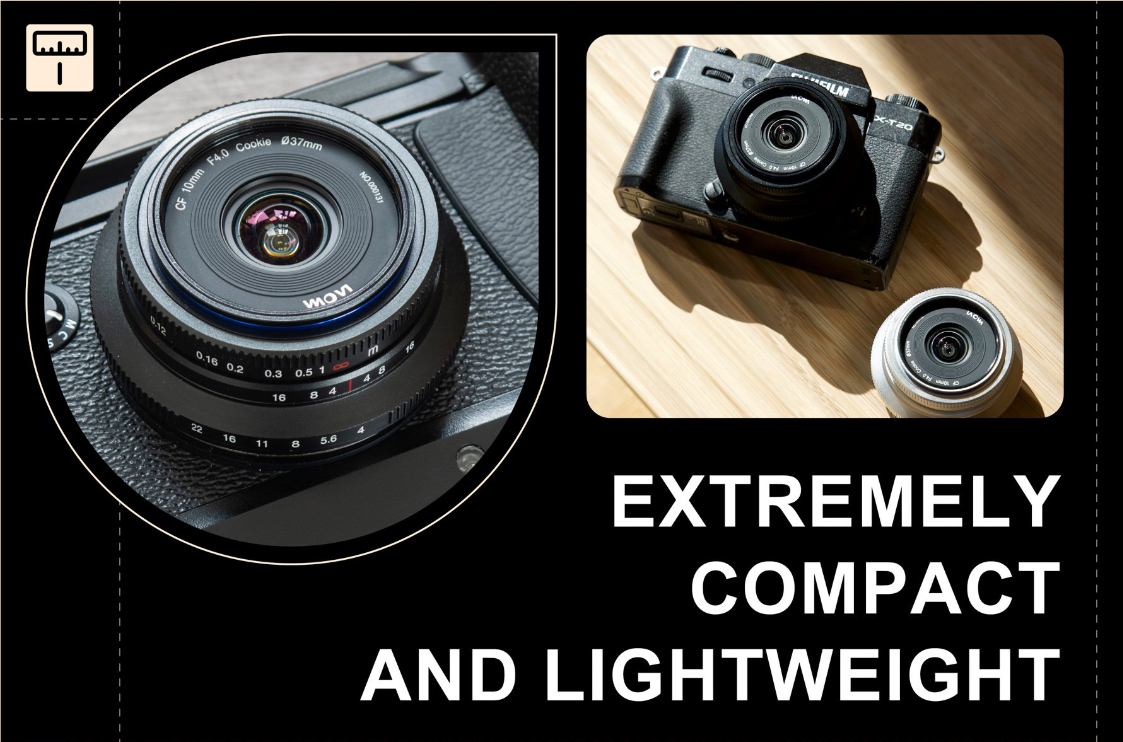

Just Like A Cookie


At just 25cm deep and weighing only 130g, bringing you a burdenless experience with gimbals and FPV, you can even treat it as a lens cap and shoot handheld easily. With such discreet design and excellent portability, you will carry it anywhere and eventually shoot more!




Ultra-wide Angle of View of  109.3°


The 10mm focal length on APS-C is equivalent to 15mm focal length on full-frame cameras. Featuring a remarkable 109.3° angle of view, this is by far the World's Widest Rectilinear APS-C Pancake lens on the market. With the advantages of the ultra-wide perspective and pocket-sized weight, this lens brings you a fantastic experience to capture epic moments in everyday life and explore the beauty in our surroundings.




Excellent Distortion Control


Unlike other pancake lenses in the market, this pancake lens has excellent control of optical distortion, you can now take shape-edged architectures and spectacular landscapes images with this lens like a no-brainer!




10-Point Sunstar


The CF 10mm F4.0 Cookie lens features 5 aperture blades, resulting in a 10-point sunstar for a unique aesthetic.




High Optical Performance


Despite the light and compact design, the lens can deliver impressive image quality and high contrast. Consisting of 12 elements in 8 groups with 4 ED glasses, the performance of chromatic aberration, flaring, and ghosting effects are optimized to support your day and night snapshots.




10cm Minimum Focusing Distance


Get extremely close to the subjects and create interesting wide-angle macro shots. A nice separation between the object and background can be achieved by this Cookie Lens.

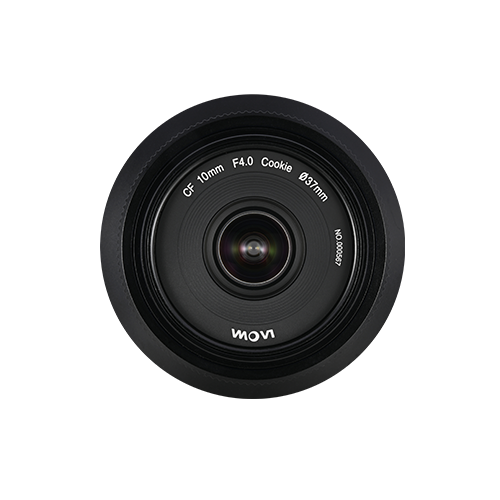

Built-in Filter Thread


Equipped with a 37mm filter thread for you to use screw-in filters directly, giving you the convenience and an affordable option as no additional filter holder is required.



Product specifications

Name CF 10mm F4.0 Cookie
Format APS-C
Focal Length 10mm
Aperture Range f/4
Angle of View 109.3°
Lens Structure 12 elements in 8 groups (4 ED elements)
Aperture Blades 5
Min. focusing Distance 10cm
Max. Magnification 0.15x
Focus Type Manual (MF)
Filter Thread Ø 37mm
Dimensions About Ø 59.8mm * 25mm
Weight About 130g
Color Black / Silver
Mounts Canon RF / Nikon Z / Sony E / L mount / Fuji X / Canon EF-M / M43

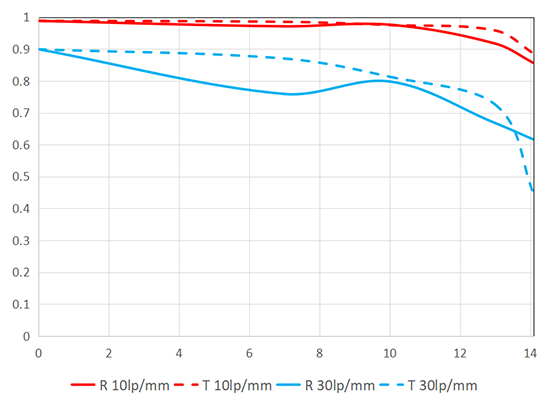

MTF

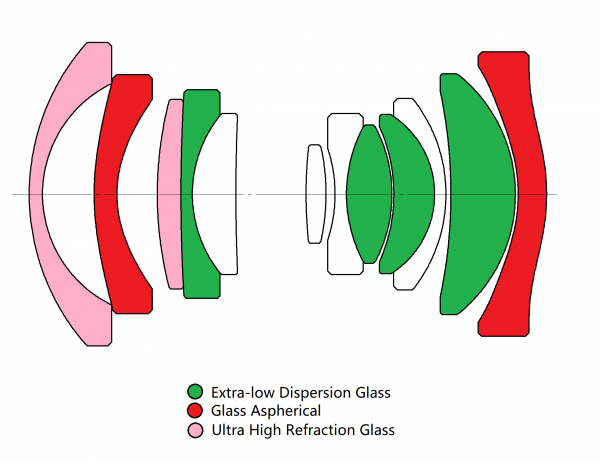

Optical Chart

Optical-pic

Optional goods of the same type

product-pic

FFⅡ 12-24mm F5.6 C-Dreamer

The 12-24mm f/5.6 zoom is an ultra-wide zoom lens designed for mirrorless cameras. With an angle of view from 84° to 121°, the lens can be very useful for multiple scenarios. It also has a fixed f/5.6 maximum aperture . Only 1.09lbs / 497g.

product-pic

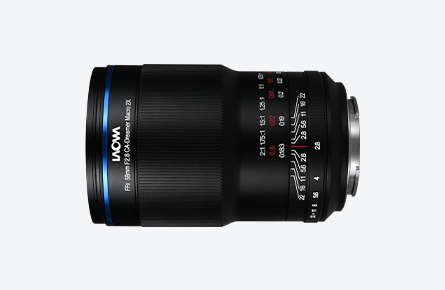

FFⅡ 58mm F2.8 CA-Dreamer Macro 2X
