Designed for full frame mirrorless cameras. It features close-to-zero distortion with 114° angle of view. The screw-in 52mm filter thread and the ultra wide perspective allows photographers to create the inspiring pictures with one-of-kind elements.

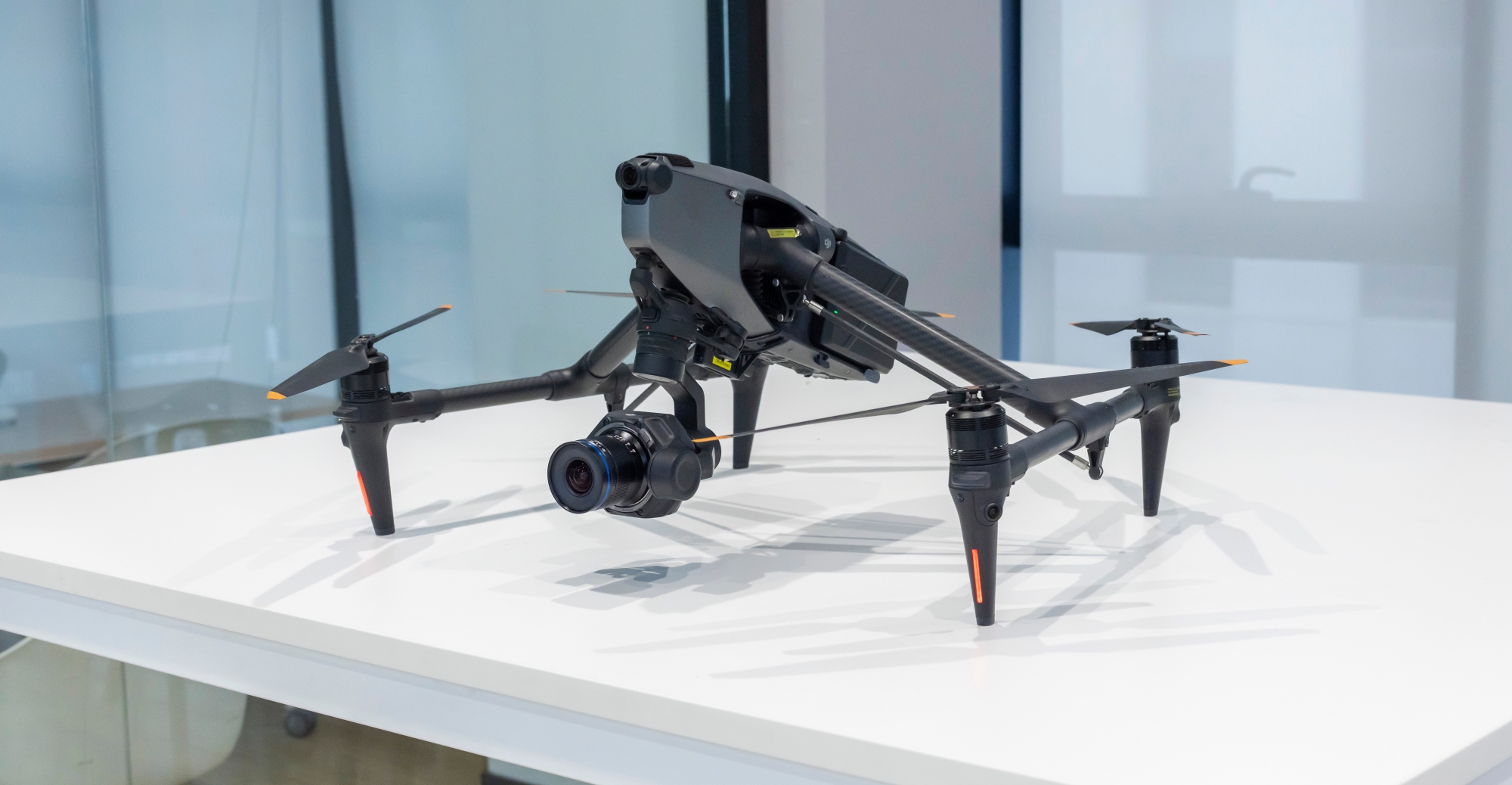

The DL mount weighs only 186g and can be used with the DJI X9 without leveling, allowing for easy takeoff.
Note:The DL version does not come with a lens hood.

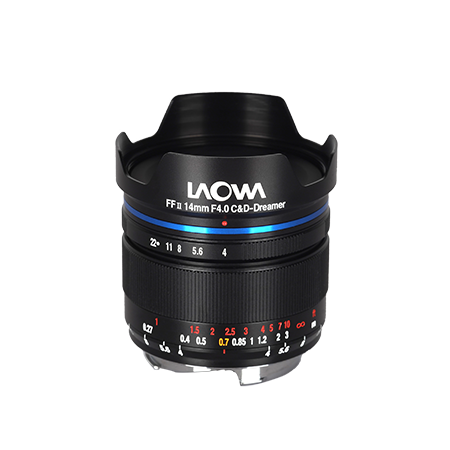

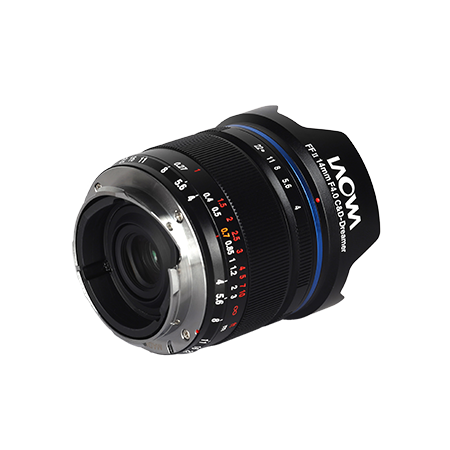

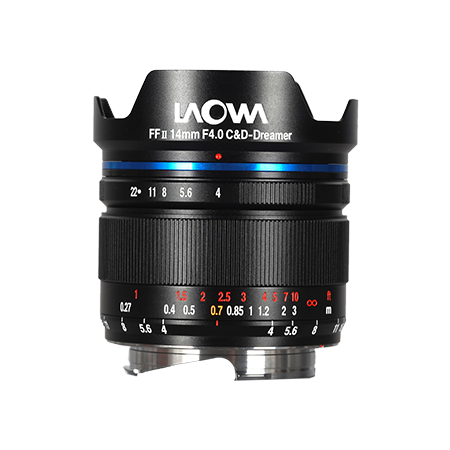

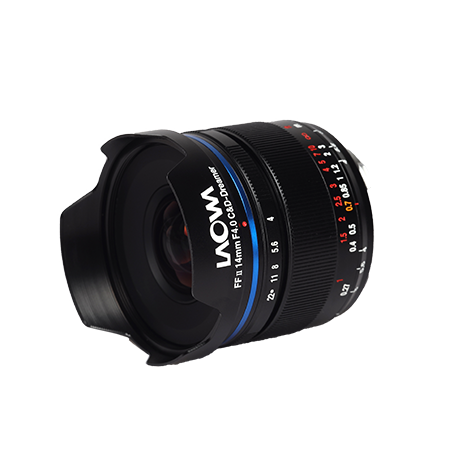

FFⅡ 14mm F4.0 C&D-Dreamer delivers an extraordinary image sharpness with 114°angle of view. The ultra-wide angle lens allows photographers to have a one-of-a-kind and inspiring pictures in an ultra-wide perspective.
FFⅡ 14mm F4.0 C&D-Dreamer is designed with 5-bladed aperture where a clean and appealing 10-point sunstar rendering can be created.
The lens composed with 2 aspherical elements and 3 extra-low dispersion elements suppress the distortion to nearly Zero distortion from corner to corner. Also, chromatic aberration is controlled to the minimum.

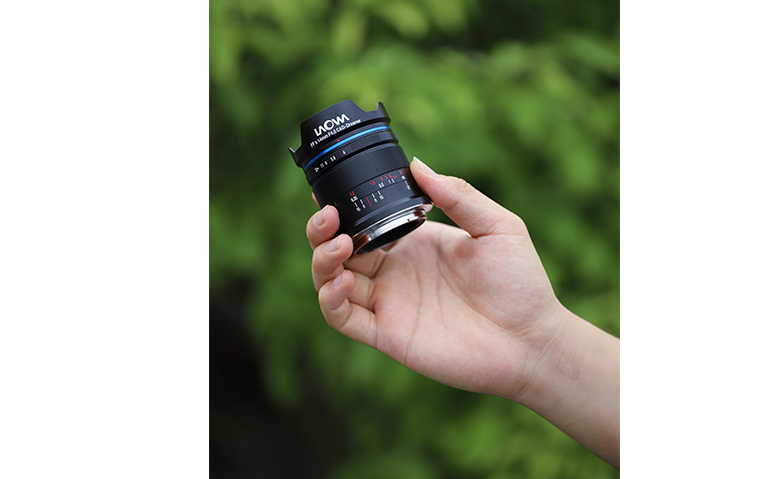

FFⅡ 14mm F4.0 C&D-Dreamer weighs 228g and the measured dimension is 58x59mm. The tiny lens is perfect for anyone to carry out for photography.

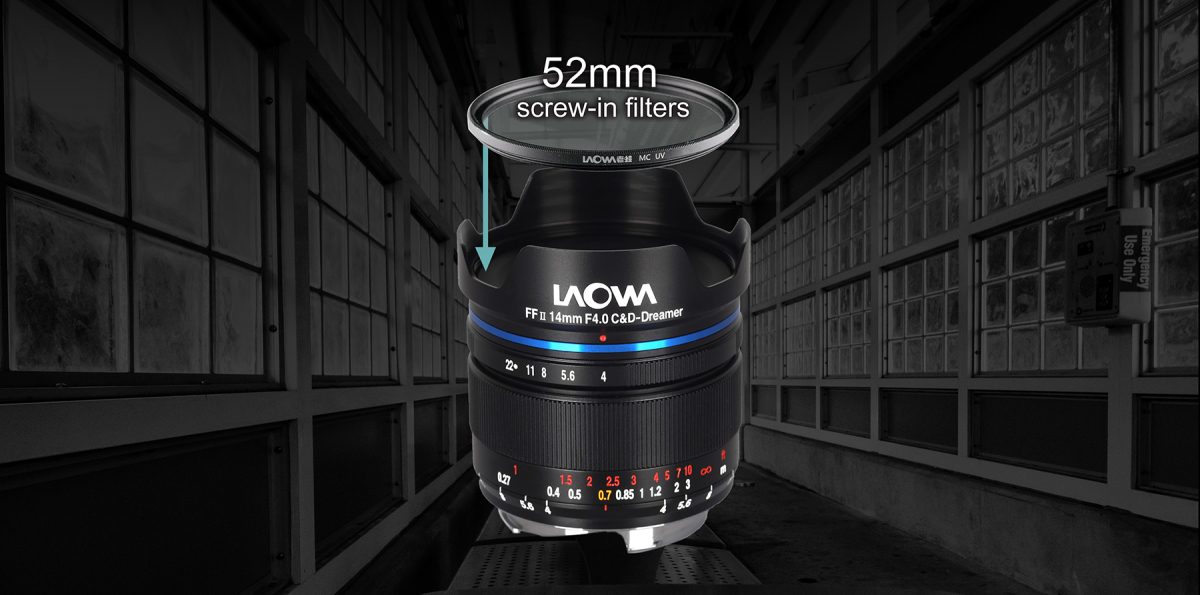

A 52mm filter thread is equipped in the 14mm F4.0 C&D-Dreamer. Conveniently, photographers can take great landscape and cityscape pictures easily without carrying filter holders. For photographers who opt to use slide-in filters, the specially designed magnetic filter holder allows them to use their 100mm-wide filters with no vignetting.
For Leica M mount photographers, rangefinder coupling is available for the lens to have a more accurate and easy focus.
| Name | FFⅡ 14mm F4.0 C&D-Dreamer |
| Format | FF |
| Focal Length | 14mm |
| Aperture Range | f/4-22 |
| Angle of View | 114° |
| Lens Structure | 13 elements in 9 groups |
| Aperture Blades | 5 |
| Min. focusing Distance | 27cm |
| Focus Type | Manual (MF) |
| Filter Thread | ø52mm |
| Dimensions | ø58*59mm (ø54.4*57.4mm) |
| Weight | 228g (DL：186g) |
| Mounts | Canon RF, Nikon Z, Sony FE, Leica M(Black and Silver), L mount, DJI DL |

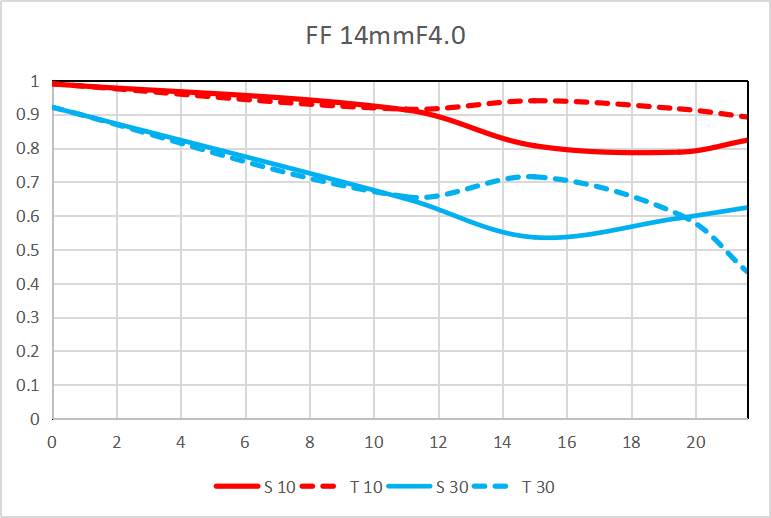

MTF

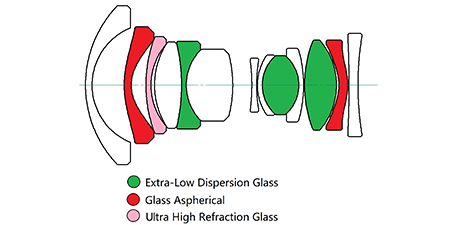

Optical Chart
©陈灿铭
FFⅡ 14mm F4.0 C&D-Dreamer
©许诺
FFⅡ 14mm F4.0 C&D-Dreamer
©唐远尧
FFⅡ 14mm F4.0 C&D-Dreamer
©陈灿铭
FFⅡ 14mm F4.0 C&D-Dreamer
©陈灿铭
FFⅡ 14mm F4.0 C&D-Dreamer
©唐远尧
FFⅡ 14mm F4.0 C&D-Dreamer
©唐远尧
FFⅡ 14mm F4.0 C&D-Dreamer
©陈灿铭
FFⅡ 14mm F4.0 C&D-Dreamer
